RADI MX-16/32 is a Magnetic Particle Automatic Extractor for extracting Nucleic Acid from various type of samples.

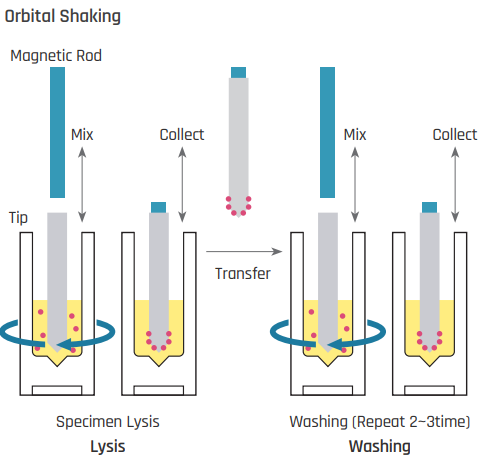

Orbital Shaking maximum 2000rpm + Vertical Mixing
Can process maximum 4ml of Volume Sample (ex: Cell free DNA)
Minimizing waste by providing one cartridge for one extraction sample.
Can operate with 1~32 samples at a time

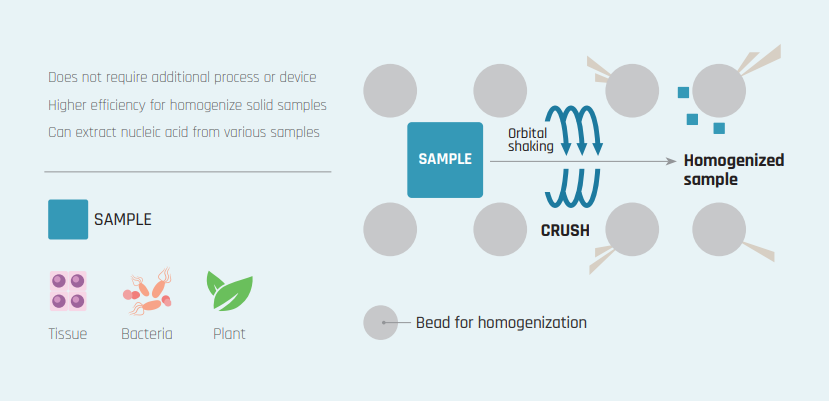

Can process various type of samples with Magnetic bead and Orbital shaking combination
(Cell-free, Blood, Tissue, Plasma, Sputum, Serum, Plant etc).
| Throughput | 1~16 Samples |
|---|---|

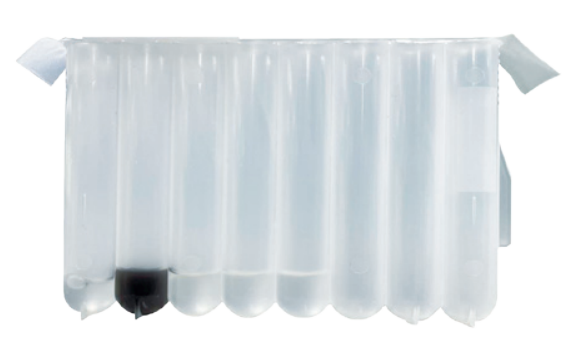

| Kit type | Pre-filled cartridge and bore |
| Technology | Magnetic Bead |
| Sample volume | 0.05 - 4 ml (elution 50 ~ 100 ul) |
| Processing time | 30 - 120 minutes |
| Automatic UV Sterilization | Yes |
| Heating Block | Yes |
| Weight | 38Kgs |
| Dimensions(mm) | 360W X 455D X 446H |
Orbital Shaking maximum 2000rpm + Vertical Mixing
Can process maximum 4ml of Volume Sample (ex: Cell free DNA)
Minimizing waste by providing one cartridge for one extraction sample.
Can operate with 1~32 samples at a time
Can process various type of samples with Magnetic bead and Orbital shaking combination
(Cell-free, Blood, Tissue, Plasma, Sputum, Serum, Plant etc).
| No. | CAT NO. | PRODUCT | PACK SIZE | |
|---|---|---|---|---|
| 1 | AA1000 | RADI MX-16 |
   |
48Tests |
| 2 | A1110 | RADI MX-16/32 Blood DNA Extraction Kit |
|
48Tests |
| 3 | A1120 | RADI MX-16/32 Cell DNA Extraction Kit |
|
48Tests |
| 4 | A1124 | RADI MX-16/32 STD DNA Extraction Kit |
|
48Tests |
| 5 | A1126 | RADI MX-16/32 TB/NTM DNA Extraction Kit |
|
48Tests |
| 6 | A1127 | RADI MX-16/32 Saliva DNA/RNA Extraction Kit |
|
48Tests |
| 7 | A1131 | RADI MX-16/32 Universal DNA/RNA Extraction Kit |
|
48Tests |
| 8 | A1132 | RADI MX-16/32 Cell-free DNA Extraction Kit |
|
48Tests |
| 9 | A1134 | RADI MX-16/32 Tissue DNA Extraction Kit |
|
48Tests |
| 10 | A1142 | RADI MX-16/32 Viral DNA/RNA Purification Kit |
|
48Tests |
